Penulator Pro Monitor now available as Touch

AMAT; Centura, Endura, Implanter XR, P5000, Producer

Thermawave; Optiprobe, all types

This modern, accurate, high quality replacement control screen is standard across many fabs globally. Available as familiar pen control, or Touch control.

  • Proven system with 2000+ units in operation worldwide. CE marked.
  • Pro works with a pen, like the light pen but more accurate
  • Touch version is a high quality touchscreen, same accurate electronics.
  • Pro pen is cordless, battery free and robust
  • No hardware changes necessary. No calibration necessary.
  • 19” LED backlit monitor, VESA fitting, energy efficient
  • Unique power saving circuit, 12X less than LCD, 31X less than CRT

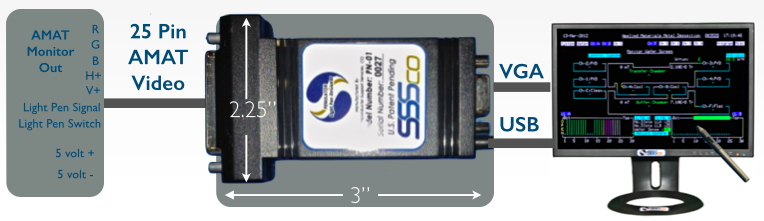

Easy to connect, just remove CRT, connect electronics box and plug in new monitor

Pro Monitor vs Touch Screen and CRT

Features Touch Screen CRT Penulator Pro
Activates cursor without contact

X

X

Matches original operating system input method

X

X

No calibration required

X

X

AMAT legacy VGA to display power management  converter

X

Works with all light pen based systems with several models available.

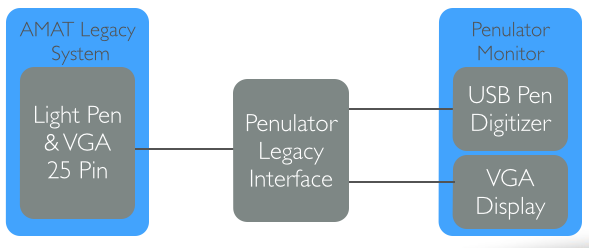

AMAT P5000, Centura and Endura

AMAT Producer

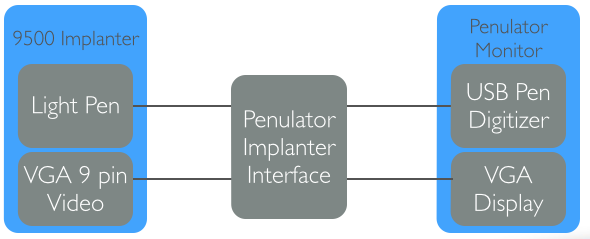

AMAT Implanter

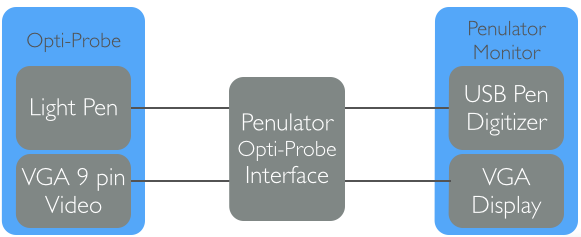

Therma-Wave Opti-Probe

Unique power saving circuit

The AMAT CRT and light pen control system can initiate a screen saving feature making the display blank however it can not put a monitor into power saving mode. CRT’s and LCD panels, even when blank, will consume full power 24X7. The Penulator Pro electronics adapter senses the screen-saving mode and put the connected monitor into power saving mode. The power savings can be substantial, even when compared to an LCD touch panel.

Power savings comparison

  • Typical fab with 100 CRT monitors - Penulator Pro can save over 75,000 kWh in one year
  • Monitors are typically used only a few minutes per hour
  • Penulator Pro will go into sleep mode consuming just 1/2 a watt


 Penulator Pro screens replace the following AMAT part numbers:

0190-27716 17" RESISTIVE CHASSIS MONITOR

0242-46555 FLAT PANEL DISPLAY

0242-46556 KIT, FLAT PANEL DISPLAY WITH PANTOGRAPH

0242-46557 KIT, FLAT PANEL DISPLAY NO VESA

0242-46558 KIT, FLAT PANEL DISPLAY WITH WALL MOUNT

0850-00003 DISPLAY FLAT PANEL 15" HIGH RESOLUTION



* US Patent Number 8,963,893 Foreign Patents pending
